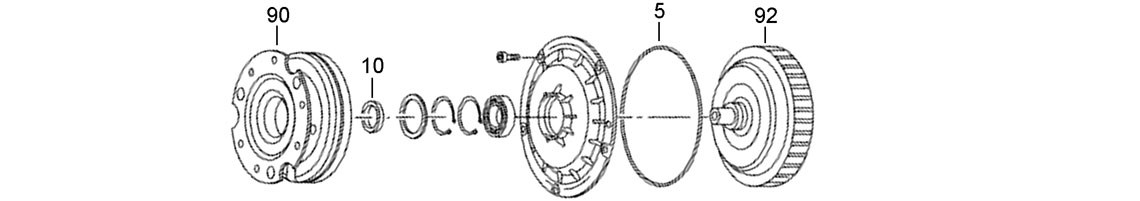

A
90
10
5
92

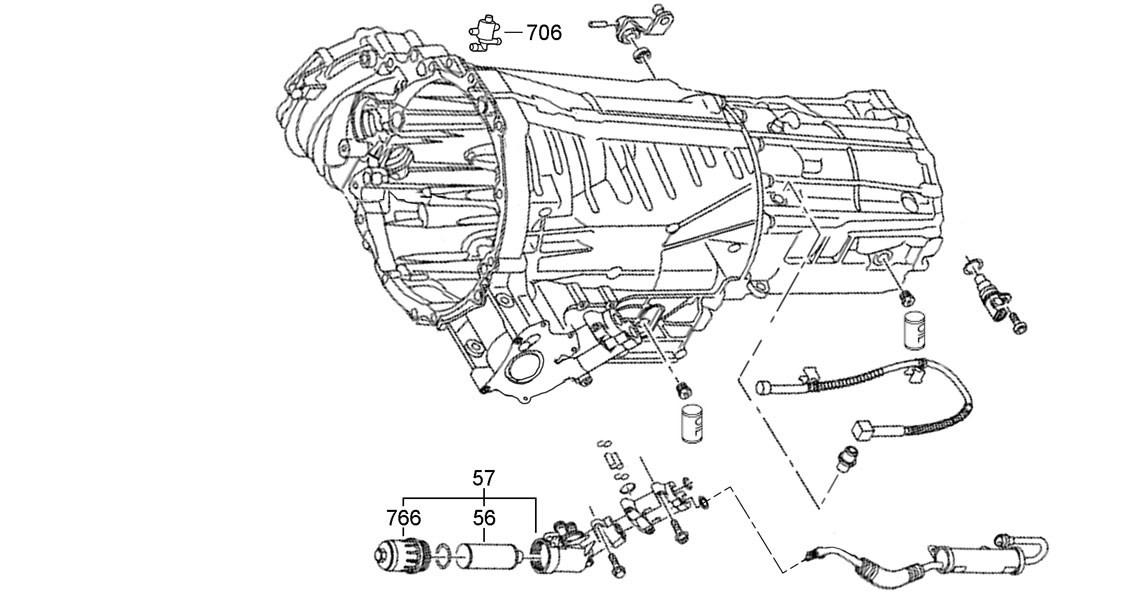

B
57
766
56
706
C
D

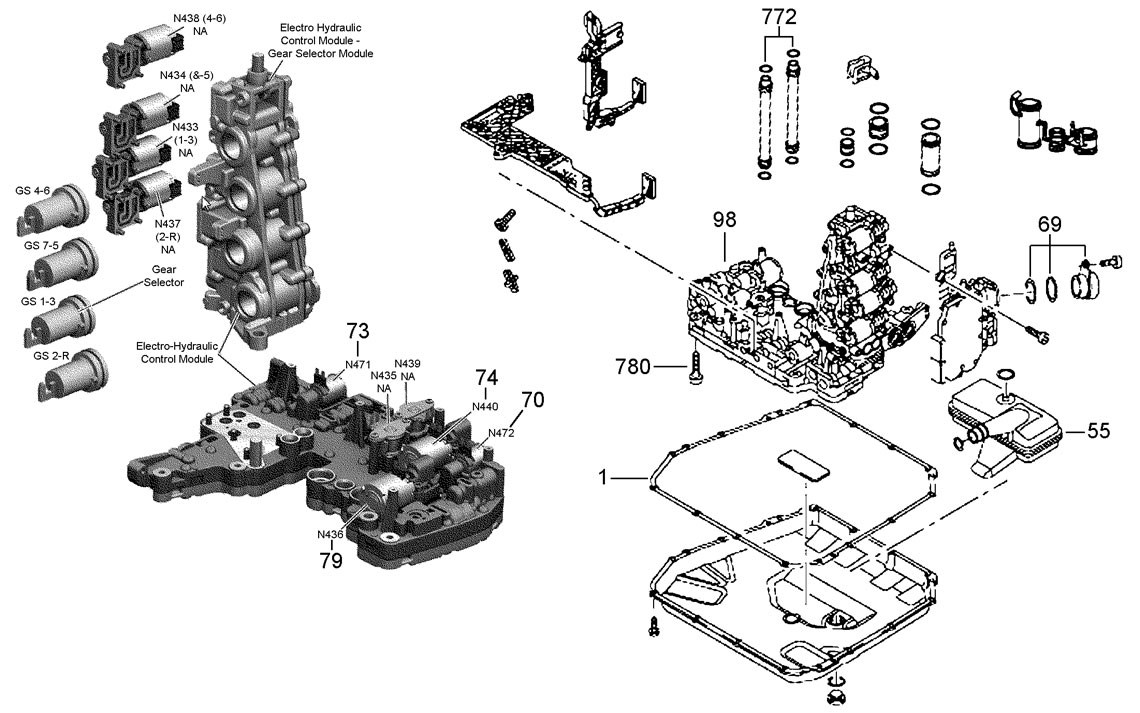

E
73
79
74
70
772
1
55
69
98
780

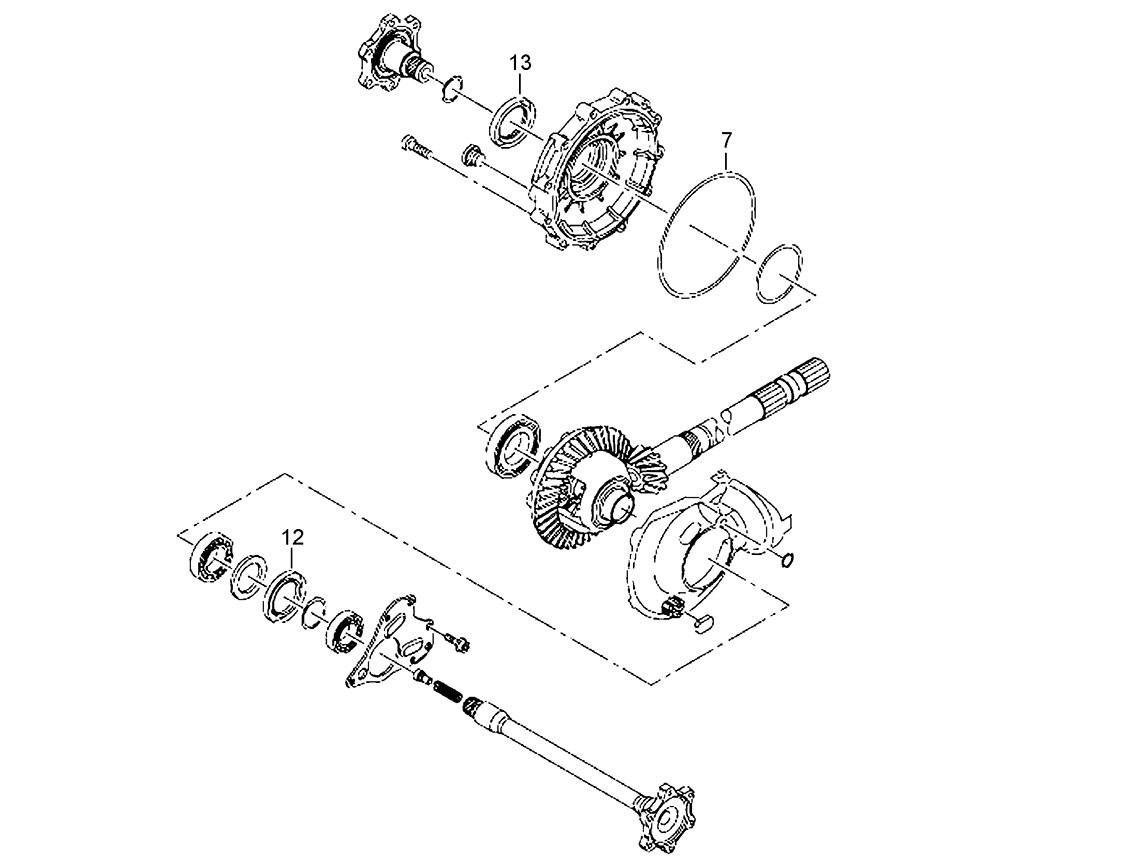

F
13
7
12
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145000K | Overhaul Kit | Transtec | 09-ON | 1 |
| Kit | D145000KA | Overhaul Kit | 09-ON | Alt |
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145002KPK | Master Rebuild Kit | Precision | 09-ON | Alt |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145120K | Valve Body Gasket Kit | 09-ON | 1 | |
| 1E | D145100 | Pan Gasket | 09-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 5A | D145160 | Front Cover O Ring | 09-ON | 1 | |
| 7F | C91170 | Differential Side Cover O Ring | 09-ON | 1 | |
| NI | D145180 | External Filter Housing O Ring | 37 ID x 2.50mm | 09-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 10A | D145200 | Front Cover Seal | 54.5 ID x 72 OD x 6.50mm | 09-ON | 1 |
| 12F | C91210 | Axle Seal Lefthand | 33 ID x 47 OD x 8.00mm | 09-ON | 1 |
| 13F | C91214 | Axle Seal Righthand | 40 ID x 55 OD x 7.00mm | 09-ON | 1 |
| NI | D145220 | Output Shaft Seal | 43 ID x 64 OD x 11,50mm | 09-ON | 1 |
| NI | D145230 | Rear Flange Housing Seal | 40 ID x 52 OD x 11.00mm | 09-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145300K | Friction Module | Borgwarner | 09-ON | 1 |
| Kit | D145300KA | Friction Module Raybestos | Raybestos | 09-ON | 1 |
| Kit | D145300KS | Friction & Steel Module, OE | 09-ON | 1 |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145350K | Steel Module | 09-ON | 1 | |
| NI | D145360 | K1 Steel Waved | 177.5 ID x 2.00mm 36T Waved | 09-ON | AR |
| NI | D145362 | K1 Steel Flat | 177.5 ID x 2.00mm 36T Flat | 09-ON | AR |
| NI | D145364 | K2 Steel Waved | 113.5 ID x 2.00mm 30T Waved | 09-ON | AR |
| NI | D145366 | K2 Steel Flat | 113.5 ID x 2.00mm 30T Flat | 09-ON | AR |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145450K | Left Front Axle Bearing Repair Kit | 09-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55E | D145550 | Filter Internal | 09-ON | 1 | |
| 56B | D145560 | Filter Cartridge External | 09-ON | 1 | |
| 57B | D145565 | Filter Houisng & Cartridge complete | 09-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145752K | Mechatronic Repair Kit With 2 x Clutch Control & Line Pressure Solenoids | 09-ON | 1 | |
| Kit | D145754K | Mechatronic Repair Kit | 08-ON | 1 | |
| 70E | D145700 | Control Solenoid Main Line Pressure (N472) | 09-ON | 1 | |
| 73E | D145700 | Control Solenoid Cooler Flow (N471) | 09-ON | 1 | |
| 74E | D145704 | Control Solenoid Clutch 1 (N440) | 09-ON | 1 | |
| 79E | D145704 | Control Solenoid Clutch 2 (N436) | 09-ON | 1 | |
| 706B | D145706 | Cooling Control Valve | 09-ON | 1 | |
| 706B | D145706A | Cooling Control Valve, Aftermarket | 09-ON | 1 | |
| Ni | D145724 | Sensor Module | 09-ON | 1 | |
| NI | D145726 | Sensor Module Wiring Harness | 09-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D145770K | Mechatronic Component Kit | 09-ON | 1 | |
| 69E | D145718 | Case Connector | 09-ON | 1 | |
| 766B | D145766 | External Oil Filter Cover | 09-ON | 1 | |
| 772E | D145772 | Mechatronic to Case Pipe (Long) | 03-ON | 1 | |
| 780E | D145780 | Mechatronic Bolt | 09-ON | AR |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 90A | D14590621 | Dual Mass Flywheel (Audi) * | 09-ON | 1 | |
| 90A | D14590625 | Dual Mass Flywheel (Audi) * | 09-ON | 1 | |
| 90A | D14590627 | Dual Mass Flywheel (Audi) * | 09-ON | 1 | |
| 90A | D14590717 | Dual Mass Flywheel (Audi) * | 09-ON | 1 | |
| 92A | D145910 | Dual Clutch Assembly * | 09-ON | 1 | |
| 92A | D145911 | Dual Clutch Assembly | 09-ON | 1 | |
| 92A | D145912 | Dual Clutch Assembly RS4 * | 09-ON | 1 |
* Vehicle Details Required for the above Parts. Some Parts may be Special Order
valve bodies
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 98E | D145995 | Mechatronic Unit* May also require Fitting Kit 145770K | 09-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49992-01 | Lubegard Complete Dual Clutch Fluid 946ml | 09-ON | AR | |
| NI | 49992-05 | Lubegard Complete Dual Clutch Fluid 5 Litre | 09-ON | AR | |
| NI | 49992-20 | Lubegard Complete Dual Clutch Fluid 20 Litre | 08-ON | AR | |
| NI | D145997-01 | DSG Hypoid Gear Oil 1 Litre Pack Lubricates Gear Trains and Front and Centre Differentials To MJ2011 | 09-11 | 4.5 | |
| NI | D145999-01 | DSG Oil 1 Litre Pack Lubricates Hydraulic Clutches and Mechatronic | 09-ON | 7.5 |
tools
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | T145910 | Clutch Repair Tool Kit (0B5) Loan Tool - Charges may apply | 09-ON | 1 |
