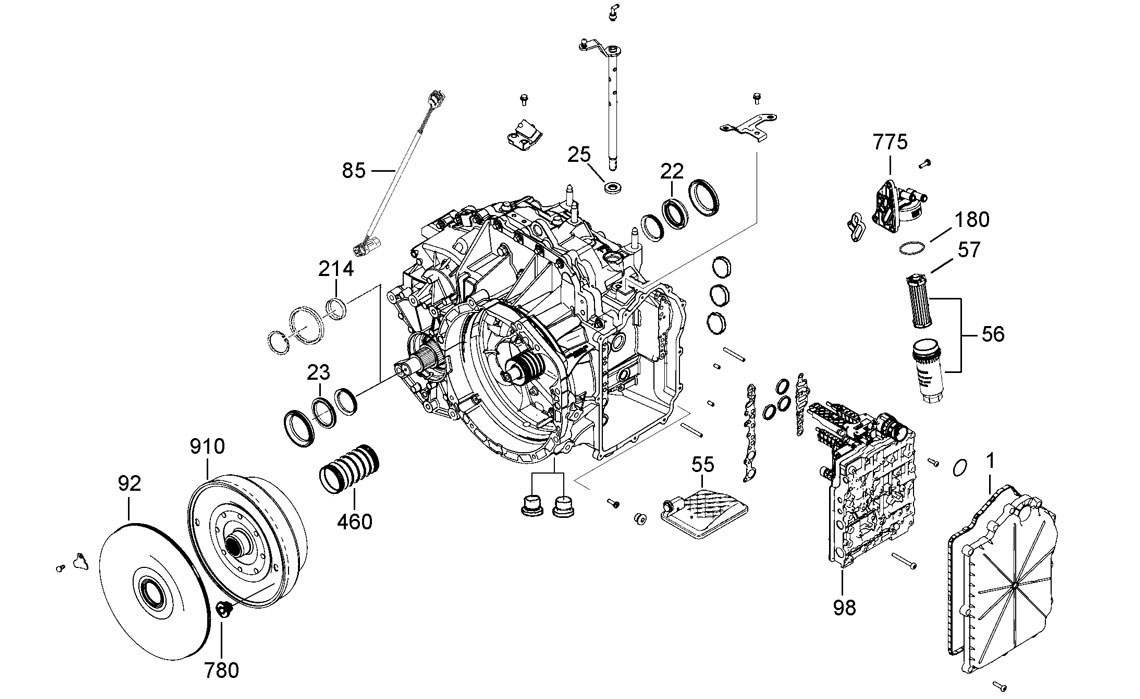

A
92
780
460
910
23
214
85
25
22
55
98
1
56
57
775
180

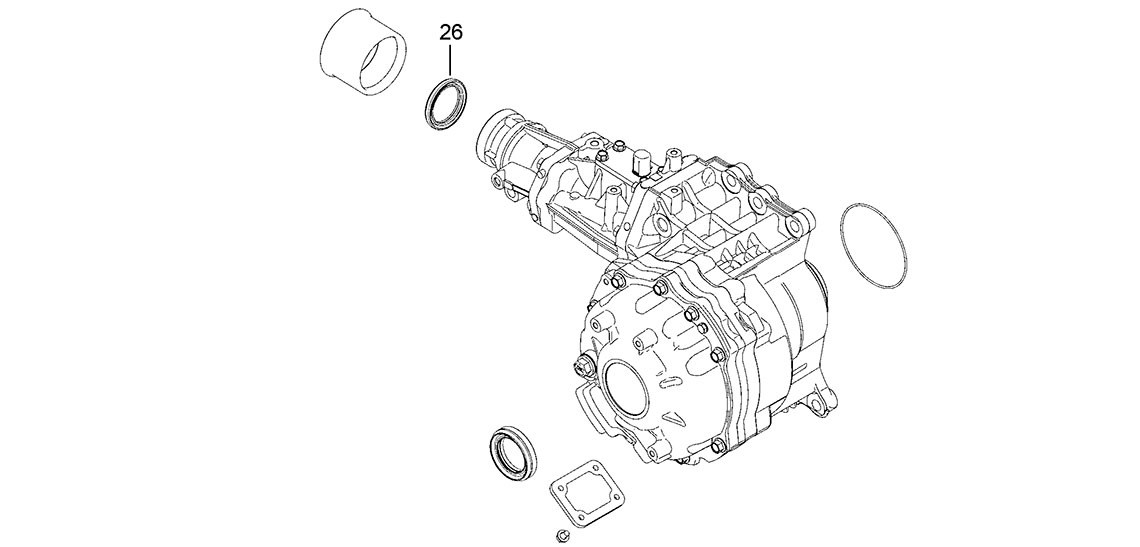

B
26
overhaul kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148000K | Overhaul Kit with Bonded Pistons* 6DCT450, MPS6 Ford, Chrysler & Volvo | Transtec | 08-ON | 1 |
| Kit | D148002K | Overhaul Kit without Bonded Pistons* 6DCT450, MPS6 Ford, Chrysler & Volvo | Transtec | 08-ON | 1 |
* Kits do not Include Front Cover
master kits
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148000KPMR | Minimum Rebuilder Kit | Precision | 08-ON | 1 |
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148120K | Valve Body Gasket Kit | 08-ON | 1 | |
| Kit | D148130K | Valve Body to Case Metal Gasket Kit | 08-ON | 1 | |
| Kit | D148165K | O Ring Kit Input Hub Apply Piston | 08-ON | 1 | |
| 1A | D148100 | Pan Gasket (Rubber Seal) | 08-ON | 1 | |
| NI | D148131 | Valve Body to Case Gasket, Long, Gen II | 14-ON | 1 | |
| NI | D148160 | Stator Gasket, Gen II | 14-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 22A | D148210 | Lefthand Axle Seal | 40 ID x 62 OD x 8.00mm | 08-ON | 1 |
| 23A | D148210 | Righthand Axle Seal | 40 ID x 62 OD x 8.00mm | 08-ON | 1 |
| 23A | D148212 | Righthand Axle Seal, Ford Kuga | 64 ID x 78 OD x 8/13.5mm | 08-ON | 1 |
| 23A | D149216 | Righthand Axle Seal, Ford Kuga | 64 ID x 76 OD x 8.00mm | 08-ON | 1 |
| 25A | D148220 | Manual Shaft Seal | 14 ID x 21 OD x 4.75mm | 08-ON | 1 |
| 26B | D148236 | Transfer Case Output Seal | 34 ID x 90 OD x 10.00mm | 08-ON | 1 |
| 214A | D148214 | Inner Axle Seal, Ford Kuga | 34.5 ID x 42 OD x 6mm Stepped | 08-ON | 1 |
| NI | D148200 | Front Dampener Seal | 106 ID x 117 OD x 6.00mm | 08-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148300K | Friction Plate Kit | 08-ON | 1 | |
| Kit | D148300KD | Dual Clutch Friction Module | Exedy | 08-ON | 1 |
| NI | D148310 | K1 Friction | 142 ID x 1.90mm x 34T | 08-ON | AR |
| NI | D148314 | K2 Friction | 142 ID x 1.90mm x 32T | 08-ON | AR |
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148350K | Steel Plate Kit | 08-ON | 1 | |
| NI | D148360 | K1/K2 Steel BorgWarner | 173 OD x 2.00mm x 42T | 08-ON | AR |
| NI | D148360A | K1/K2 Steel Allomatic | 173 OD x 2.00mm x 42T | 08-ON | AR |
| NI | D148361 | K1/K2 Steel | 173 OD x 1.60mm x 42T | 08-ON | AR |
| NI | D148362 | K1 Top Steel | 173 OD x 2.18mm x 42T | 08-ON | AR |
| NI | D148366 | K2 Top Steel | 173 OD x 2.70mm x 42T | 08-ON | AR |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148450K | Clutch Thrust Washer Kit | 08-ON | 1 | |
| 460A | D148460 | Needle Bearing Clutch Support (Plastic) | 52 ID x 56 OD x 11.50mm | 08-ON | 1 |
| NI | D148464 | Input Bearing | 31.7 ID x 65 OD x 18.00mm | 08-ON | 1 |
| NI | D148466 | Input to Input Shaft Bearing | 42.5 ID x 61.3D x 4.00mm | 08-ON | 1 |
| NI | D148470 | Bearing Shaft | 27 ID x 72 OD x 18.00mm | 08-ON | 1 |
| NI | D148475 | Ball Bearing / Retainer Secondary Shaft | 27 ID x 72 OD x 18.00mm | 08-ON | 1 |
| NI | D148480 | Roller Bearing Output Shaft Front | 45 ID x 70 OD x 19.50mm | 08-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55A | D148550 | Internal Filter | 08-ON | 1 | |
| 56A | D148560 | Cartridge & Filter Housing | 08-ON | 1 | |
| 57A | D148565 | Cartridge only | 08-ON | 1 |
Transmission must be Disassembled to change Internal Filter.
pistons
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148570K | Bonded Clutch Piston Kit | 08-ON | 1 | |
| Kit | D148572K | Bonded Shift Piston Kit | 08-ON | 1 |
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148700K | Solenoid Set | 08-ON | 1 | |
| 85A | D148732 | Speed Sensor Gen I | 08-05/15 | 1 | |
| 85A | D148734 | Speed Sensor Gen II | 05/15-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 775A | D148760 | Oil Cooler (6DCT450/TF80) | 08-ON | 1 | |
| 775A | D148775 | External Cooler Housing Support Bracket | 08-ON | 1 | |
| 780A | D148780K | Dual Clutch Oil Plug - 4 pcs Pack | 08-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D148920KU | Shift Forks (Set of 4), Used | 08-ON | 1 | |
| 92A | D148905 | Moulded Front Cover | 08-ON | 1 | |
| 92A | D148905A | Moulded Front Cover, Spring Type | 08-ON | Alt | |
| 92A | D148906 | Moulded Front Cover Gen II, OEM | 05/15-ON | 1 | |
| 98A | D148940 | Mechatronic Unit - Ford Supplied Blank Gen I | 08-05/15 | 1 | |
| 98A | D148941 | Mechatronic Unit Ford Supplied Blank Gen II | 05/15-ON | 1 | |
| 910A | D148912K | Dual Clutch, 1.6 & 2.0L Petrol | 08-ON | 1 | |
| 910A | D148916K | Dual Clutch (Gen 1) 2.0L Diesel | 08-ON | 1 | |
| 910A | D148916KA | Dual Clutch (Gen 2) 2.0L Diesel | 14-ON | 1 | |
| NI | D148990 | Dual Mass Flywheel Special Order Vehicle Details Required | 08-ON | 1 |
* VIN No required
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49992-01 | Lubegard Complete Dual Clutch Fluid 946ml | 08-ON | AR | |
| NI | 49992-05 | Lubegard Complete Dual Clutch Fluid 5 Litre | 08-ON | AR | |
| NI | 49992-20 | Lubegard Complete Dual Clutch Fluid 20 Litre | 08-ON | AR | |
| NI | D148999-01 | Gertrag 6 Speed DCT Oil -1 Litre | 08-ON | AR | |
| NI | D148999G | Dual Clutch Grease | 08-ON | AR |
tools
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | T148910 | Getrag Dual Clutch Housing Loan Tool | 08-ON | 1 | |
| NI | T148920 | Front Seal Installer (Inner) Ford | 08-ON | 1 |
