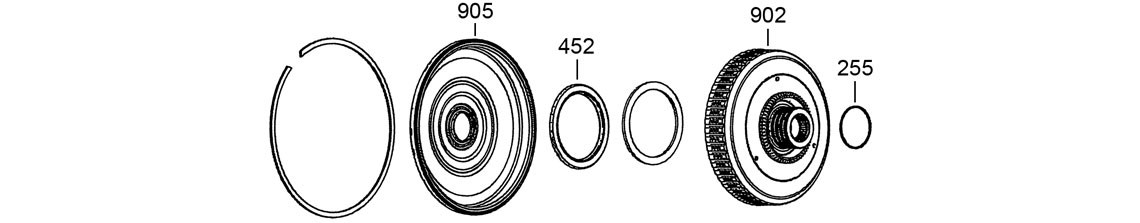

A
905
452
902
255
B

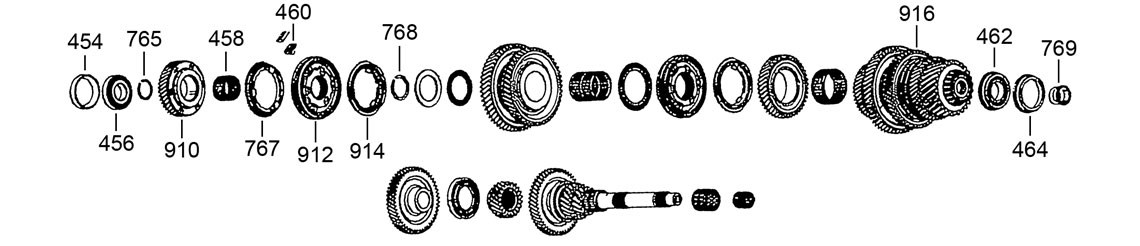

C
454
765
456
910
458
460
767
912
914
768
916
462
464
769

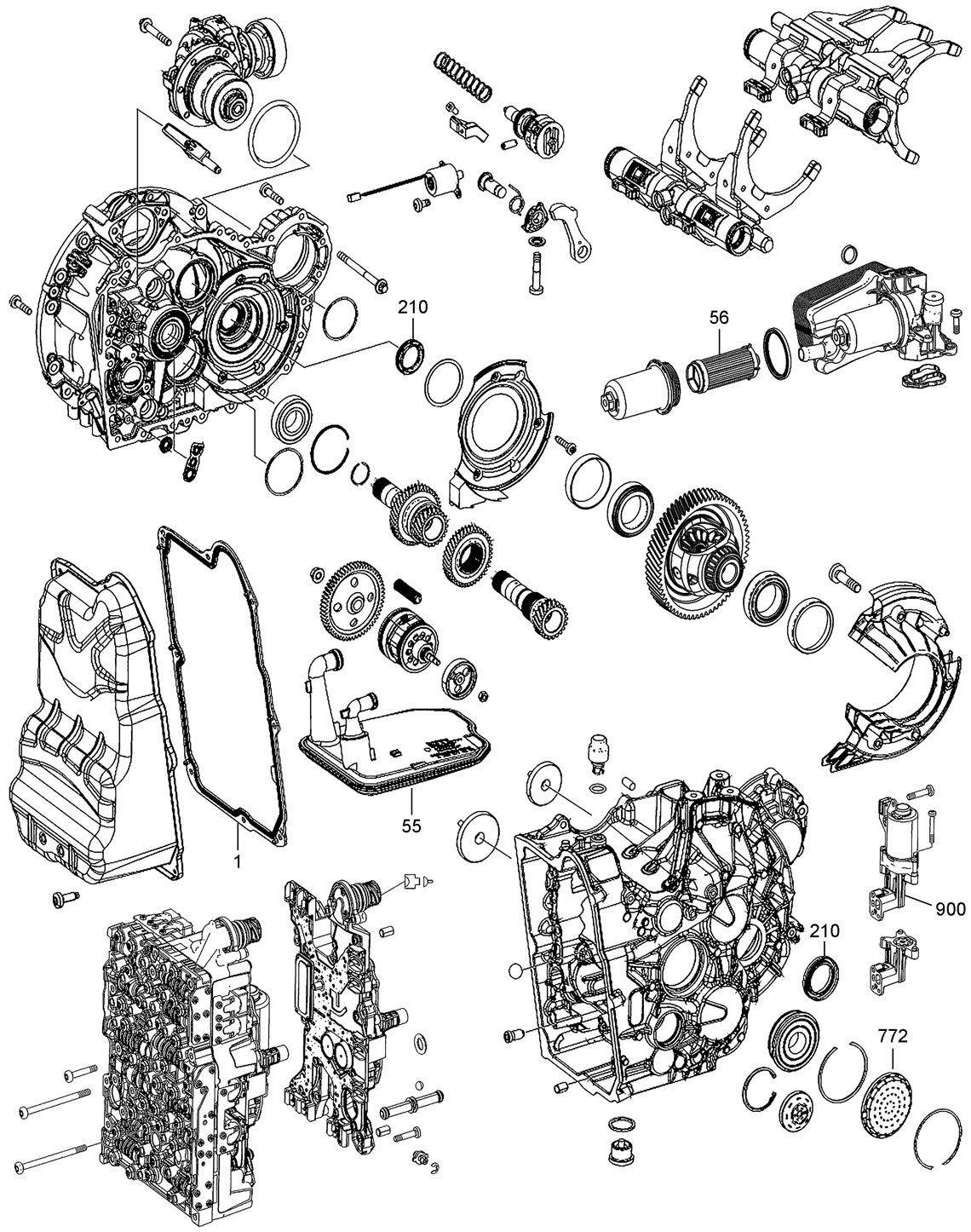

D
1
55
56
900
210
210
772
steel & pressure plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | D146360 | Small Inner Steel | 137.27 ID x 1.93mm x 36T | 12-ON | AR |
| NI | D146364 | Large Outer Steel | 113.5 ID x 2.00mm x 30T | 12-ON | AR |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 452A | D146452 | Front Bearing | 12-ON | 1 | |
| 454C | D146454 | Outer Race | 12-ON | 1 | |
| 456C | D146456 | Tapered Roller Bearing | 12-ON | 1 | |
| 458C | D146458 | Needle Bearing | 12-ON | 1 | |
| 460C | D146460 | Thrust Piece | 12-ON | 1 | |
| 462C | D146462 | Tapered Roller Bearing | 12-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 55D | D146550 | Internal Filter | 12-ON | 1 | |
| 56D | D146560 | External Filter | 12-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 765C | D146765 | Snap Ring | 12-ON | 1 | |
| 767C | D146767 | Synch Ring | 12-ON | 1 | |
| 768C | D146768 | Lock | 12-ON | 1 | |
| 769C | D146769 | Damping Sleeve | 12-ON | 1 | |
| 772D | D146772 | Transmission Housing Cover | 12-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 900D | D146900 | Oil Pump | 12-ON | 1 | |
| 902A | D146902 | Dual Clutch Assembly | 12-ON | 1 | |
| 905A | D146905 | Front Cover | 12-ON | 1 | |
| 910C | D146910 | Idler Gear | 12-ON | 1 | |
| 912C | D146912 | Synch Body | 12-ON | 1 | |
| 914C | D146914 | Synch Body | 12-ON | 1 | |
| 916C | D146916 | Power Output Shaft | 12-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49992-01 | Lubegard Complete Dual Clutch Fluid 946ml | 12-ON | AR | |
| NI | 49992-05 | Lubegard Complete Dual Clutch Fluid 5 Litre | 12-ON | AR | |
| NI | 49992-20 | Lubegard Complete Dual Clutch Fluid 20 Litre | 12-ON | AR |
