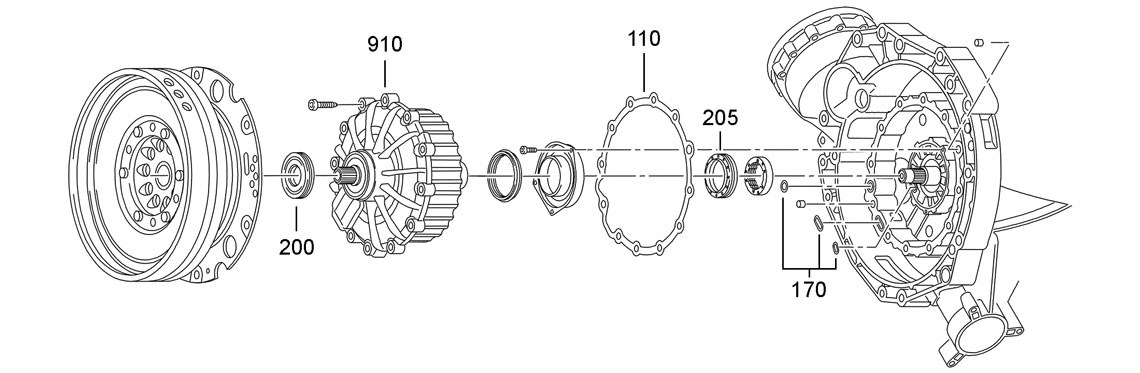

A
Multi Plate Clutch
200
910
205
170
110

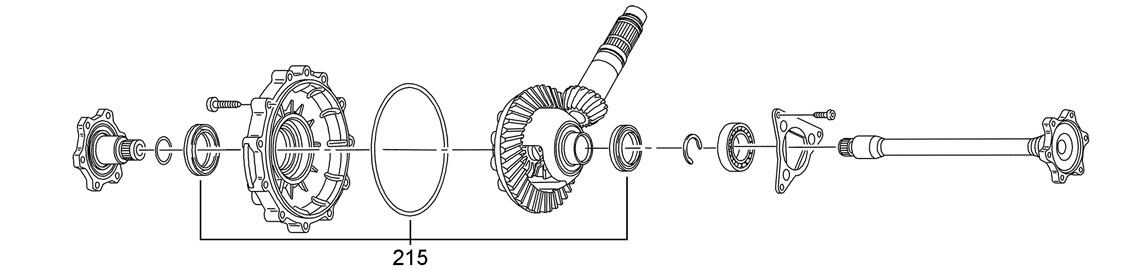

B
Front Differential
215

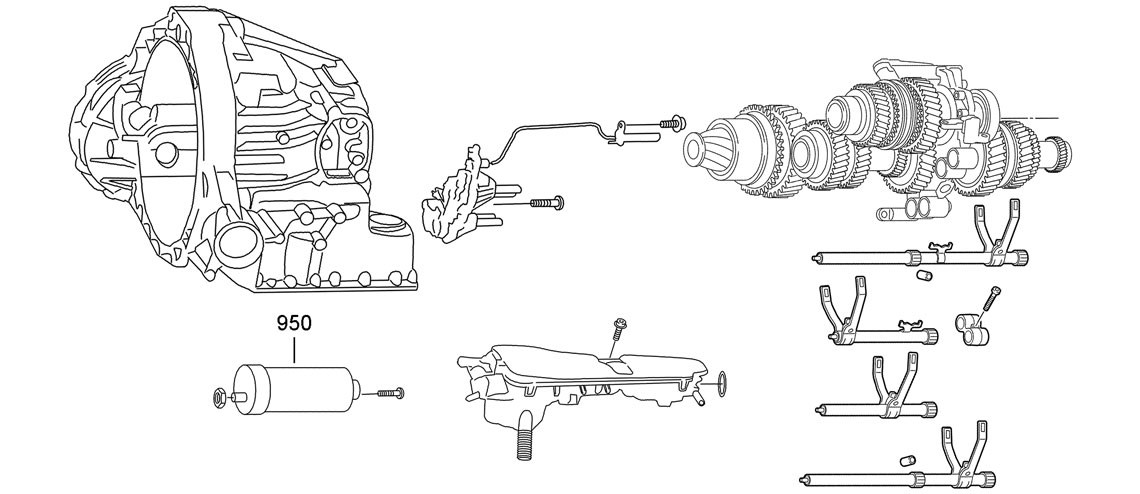

C
Gear Selector Pressure Accumulator
950
D
Drive Shaft & Gears

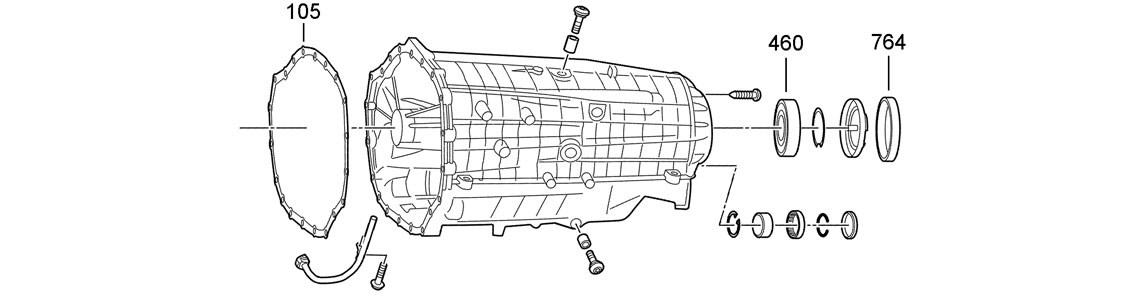

E
105
460
764

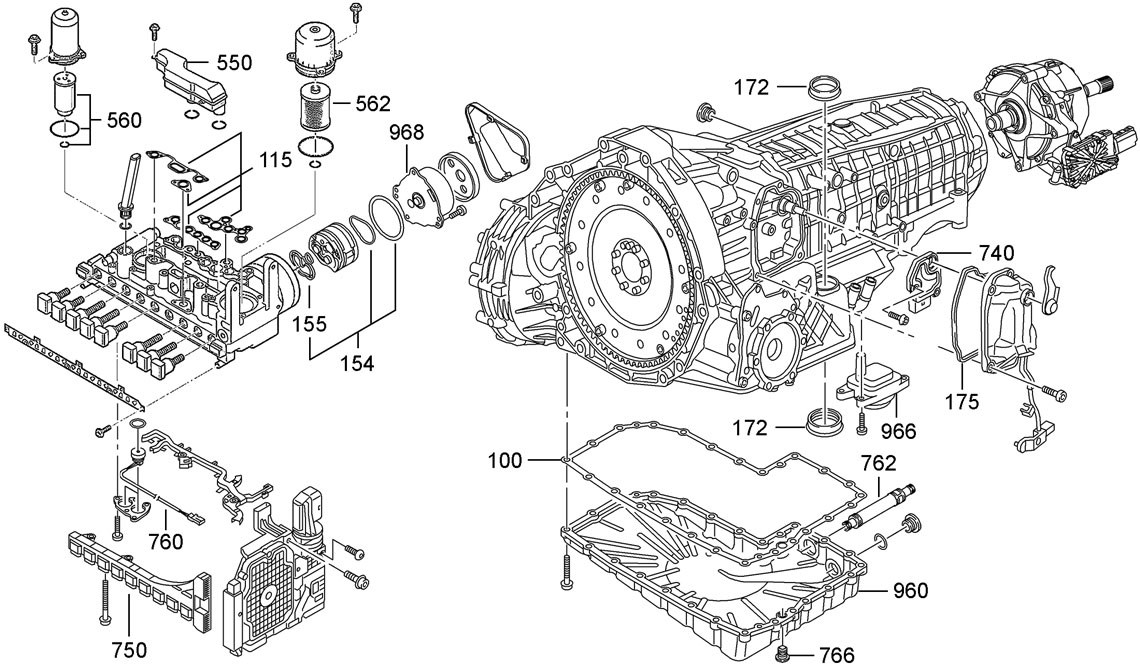

F
115
155
750
154
968
100
960
762
172
172
740
175
966
560
550
562
760
gaskets
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 100F | D143100 | Paper Pan Gasket | 14-ON | 1 | |
| 100F | D143104 | Moulded Rubber Pan Gasket | 14-ON | 1 | |
| 105E | D143105 | Bell Housing to Case Gasket | 14-ON | 1 | |
| 110A | D143110 | Clutch to Case Gasket | 14-ON | 1 | |
| 115F | D143115K | Valve Body Metal Gasket Kit | 14-ON | 1 |
rubber components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D143005K | Valve Body Sub Seals Kit | 14-ON | 1 | |
| 154F | D143154K | Oil Pump & Motor Gaskets | 14-ON | 1 | |
| 155F | D143155 | Oil Pump Gasket - Hybrid, Quattro Ultra | 14-ON | 1 | |
| 170A | D143170K | Bell Housing Seal Kit | 14-ON | 1 | |
| 172F | D143172K | Mechatronic Upper and Lower Seals | 14-ON | 1 | |
| 175F | D143175 | Position Sensor Cover Gasket | 14-ON | 1 |
seals
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D143210K | Seal Kit, TECHM | 15-ON | 1 | |
| Kit | D143220K | Axle Drive Sub Kit | 15-ON | 1 | |
| 200A | D143200 | Cover to Multi Clutch Front Seal | 25 ID x 62 OD x 7.00mm | 14-ON | 1 |
| 205A | D143205 | Shaft to Bell Housing Input Seal | 46.5 ID x 60 OD x 14/16mm | 14-ON | 1 |
| 215B | D143215K | Axel & Front Differential Sub Kit | 14-ON | 1 |
friction plates
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D143300K | Friction Kit | 14-ON | 1 | |
| NI | D143310 | Friction K1/K2 Double Sided | 131 ID x 2.00mm x 30T | 14-ON | 6-8 |
| NI | D143312 | Friction K1/K2 Single Sided | 131 ID x 2.40mm x 30T | 14-ON | 4 |
thrust washers & bearings
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 460E | D143460 | Rear Case Bearing | 14-ON | 1 |
filters
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 550F | D143550 | Filter | 14-ON | 1 | |
| 560F | D143560 | Valve Body Pressure Filter | 14-ON | 1 | |
| 562F | D143562 | Valve Body Pressure Filter | 14-ON | 1 |
Transmission must be Disassembled to replace Internal Filter
electrical components
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| Kit | D143700KFN | Solenoid Set - 9 Piece, 0CK Only | 14-ON | 1 | |
| 740F | D143740 | Drive Position Sensor | 14-ON | 1 |
sundry parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 750F | D143750 | Mechatronic Harness | 14-ON | 1 | |
| 760F | D143760 | Pressure Sensor | 14-ON | 1 | |
| 762F | D143762 | Pan Pipe | 14-ON | 1 | |
| 764E | D143764 | Case Rear End Cap | 14-ON | 1 |
hard parts
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| 910A | D143910 | Dual Clutch Assembly With Cover | 14-ON | 1 | |
| 950C | D143950U | Pressure Accumulator | 14-ON | 1 | |
| 960F | D143960 | Oil Pan | 14-ON | 1 | |
| 966F | D143966 | Oil Pump, Check VIN | 14-ON | 1 | |
| 968F | D143968 | Step Motor | 14-ON | 1 |
fluids
| NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
|---|---|---|---|---|---|
| NI | 49992-01 | Lubegard Complete Dual Clutch Fluid 946ml | 14-ON | AR | |
| NI | 49992-05 | Lubegard Complete Dual Clutch Fluid 5 Litre | 14-ON | AR | |
| NI | 49992-20 | Lubegard Complete Dual Clutch Fluid 20 Litre | 14-ON | AR |
