A

Pump

902
40
6
10

B

B1 Brake

21
20
56
390

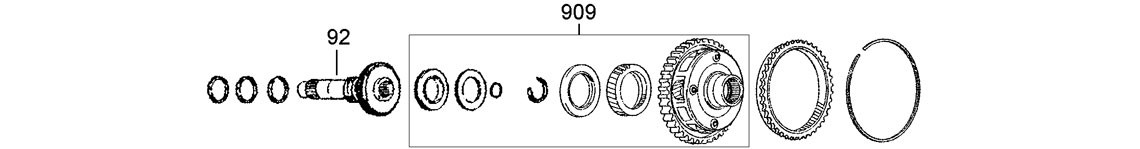

C

Input Shaft & Underdrive Planet

92
909

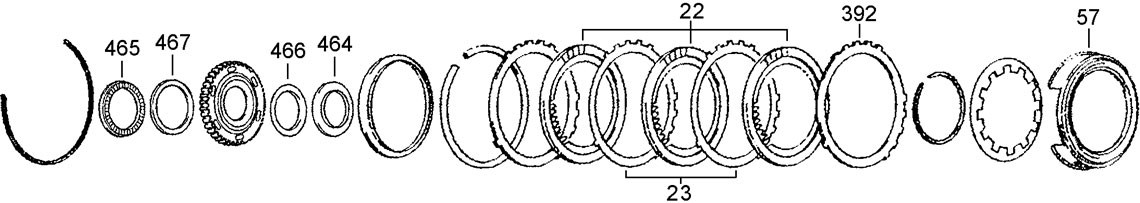

D

B3 Brake

23
392
22
57
465
467
466
464

E

B2 Brake & One Way Clutch

25
24
58
394

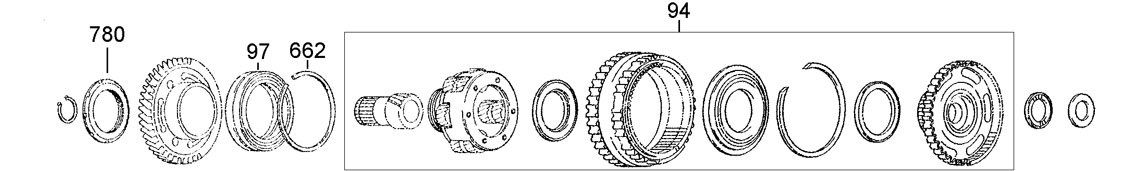

F

Planetary Assembly

94
97
662
780

G

C2 (Direct) & C1 (Foreward) Clutches

27
29
26
28
398
398

H

C1 & C2 Clutch Drum & End Cover

97

J

Case, Pan , Filter & Valve Body

71
72
73
55
74
76
990
8
985
70
75
1
12
13
730

K

Transfer Box Assembly


overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103000K Overhaul Kit with Bonded Pistons U660E, U660F Transtec 07-ON 1
Kit 103000KP Overhaul Kit With Bonded Pistons Precision 07-ON Alt
Kit 103002K Overhaul Kit without Bonded Pistons U660E, U660F Transtec 07-ON 1
Kit 103002KP Overhaul Kit without Pistons Precision 07-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103000KM Master Kit 07-ON Alt

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103126K Valve Body Gasket Set 07-ON 1
1J 103100 Pan Gasket Cork 07-ON 1
1J 103101 Pan Gasket Duraprene 07-ON 1
1J 103102 Pan Gasket, Metal 07-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
6A 103160 Pump O Ring 07-ON 1
6A 103162 Pump Seal, Lathe Cut 07-ON 1
8J 103170 Filter O Ring 07-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 103200 Front Pump Seal 42 ID x 62 OD x 6.00mm 07-ON 1
12J 78212 Axle Seal Lefthand Toyota 50 ID x 68.3 OD x 8.80mm 07-ON 1
12J 78216 Lefthand Axle Seal, Toyota Alphard 47.5 ID x 68.3 OD x 15.4mm 07-ON 1
13J 75216 Axle Seal Righthand Toyota 40 ID x 56 OD x 9.00mm 07-ON 1
13J 78220 Axle Seal Righthand Toyota 62 ID x 74 OD x 8.00mm 07-ON 1
13J 78222 Axle Seal Righthand 55 ID x 74 OD x 9.90mm 07-ON 1
13J 78235 Righthand Axle Seal, Toyota Alphard 34 ID x 41.6 OD x 21.70mm 07-ON 1
13J 80216 Axle Seal Righhand Suzuki 40 ID x 54 OD x 9.00mm 07-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103250K Sealing Ring Kit 07-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103300K FRICTION MODULE (U660E/U760E) HYB TEC 07-ON 1
20B 103310 B1 Friction 177.3 OD x 1.85mm x 40T 07-ON 4
22D 103310 B3 Friction 177.3 OD x 1.85mm x 40T 07-ON 3
24E 103314 B2 Friction 184 OD x 1.50mm x 40T 07-ON 4
26G 103318 C2 (Direct) Friction 166.4 OD x 1.80mm x 40T 07-ON 4
28G 103318 C1 (Forward) Friction 166.4 OD x 1.80mm x 40T 07-ON 4

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 103360 B1 Steel 153.5 ID x 1.85mm x 11T 07-ON 4
23D 103362 B3 Steel 153.5 ID x 2.20mm x 11T 07-ON 3
25E 103364 B2 Steel 163.3 ID x 1.60mm x 16T 07-ON 4
27G 103366 C2 (Direct) Steel 144 ID x 2.15mm x 40T 07-ON 4
29G 103368 C1 (Forward) Steel 144 ID x 1.80mm x 40T 07-ON 4
390B 103390U Pressure Plate B1 153.5 ID x 3.30mm x 11T 07-ON AR
392D 103392U Pressure Plate B3 153.5 ID x 4.00mm x 11T 07-ON AR
394E 103394U Pressure Plate B2 163.3 ID x 4.00mm x 16T 07-ON AR
398G 103398U Pressure Plate C1/C2 144 ID x 3.40mm x 40T 07-ON AR

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103400K Bush Kit 07-ON 1
Kit 107400KD Bush Kit 07-ON 1
40A 103410 Pump Bush 46.23mm (1.820") OD 07-09 1
40A 107410 Pump Bush 47.20mm OD 07-ON 1
467D 103467 Thrust Bearing Race, No 1 07-ON 1

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
97F 103462 Bearing Counter Drive Gear 72 ID x 104 OD x 30.00mm 07-ON 1
464D 103464 Thrust Needle Roller Bearing, No 1 07-ON 1
465D 103465 Thrust Needle Roller Bearing, No 2 07-ON 1
466D 103466 Thrust Bearing Race, No 2 07-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
55J 103550 Filter 07-ON 1
55J 103552 Filter 10-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103550K Filter Kit 07-ON 1
Kit 103552K Filter Kit, Diesel 07-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103570K Piston Kit 07-ON 1
56B 103580 B1 Piston 07-ON 1
57D 103584 B3 Piston 07-ON 1
58E 103588 B2 Brake Piston 07-ON 1

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
662F 103662 Circlip Counter Drive Gear 07-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
70J 103700 SLT Line Pressure Solenoid 07-ON 1
71J 103702 SLU Lock Up Control Solenoid 07-ON 1
72J 103710 SL1 Solenoid Clutch Control No 1 07-ON 1
73J 103712 SL2 Solenoid Clutch Control No 2 07-ON 1
74J 103710 SL3 Solenoid Clutch Control No 1 07-ON 1
75J 103712 SL4 Solenoid Clutch Control No 2 07-ON 1
76J 103716 SL Solenoid Automatic Transmission 3 Way 07-ON 1
730J 103730 Speed Sensor 07-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103760 Lockup Control Boost Valve Kit 07-ON 1
Kit 103764K B1 Apply Piston Boost Valve Kit 07-ON 1
Kit 103778K Reverse Boost Valve Kit 07-ON 1
780F 103780 Nut Counter Drive Gear 07-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 103810K Zip Kit 07-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
92C 103905U Input Shaft (Used) 07-ON 1
94F 103940KU Planet Kit (Used) 07-ON 1
97H 103980 C1/C2 Clutch Drum complete Contains items marked and all Frictions & Steel from Section G 07-ON 1
902A 103902U Pump (Used) 07-ON 1
909C 103909U Underdrive Planet with Bearings 07-ON 1
985J 103985 Counter Driven Gear 07-ON 1

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
990J 103990U Valve Body With 7 Solenoids (Used) 07-ON 1

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49991-01 LUBEGARD COMPLETE FULL SYNTHETIC (946ml) AR
NI 49991-05 LUBEGARD COMPLETE FULL SYNTHETIC 5L AR
NI 49991-20 LUBEGARD COMPLETE FULL SYNTHETIC (20L) AR
