A

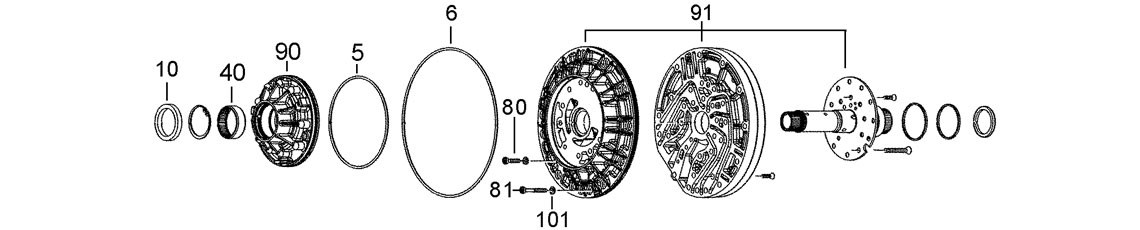

Pump

90
6
80
81
91
10
40
5
101

B

A Clutch

21
20
30
60
92
31
61
416

C

E Clutch

23
44
22
43
41
42
58
56
32
94
62
33
63
86
928
926
658
430
430
932

D

B Clutch

45
24
25
65
64
84
35
34
438
438

E

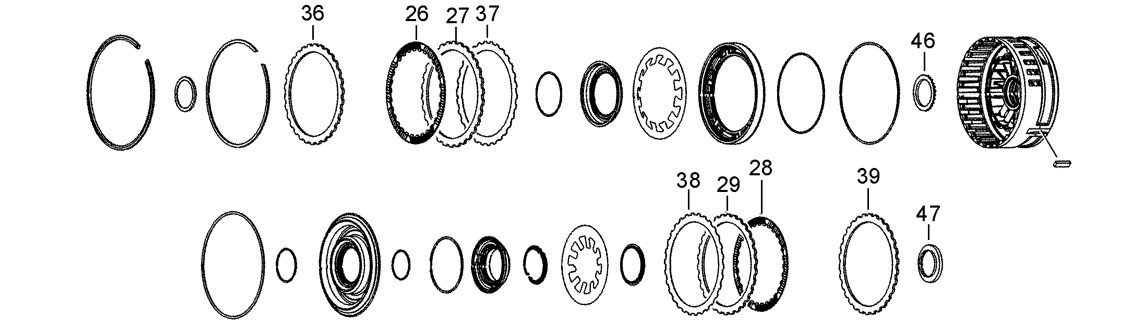

C & D Brakes

47
46
28
29
27
26
39
36
38
37

F

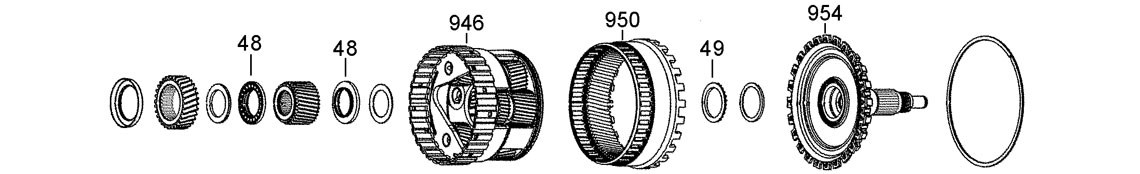

Rear Planetary Assembly

49
48
48
946
950
954

G

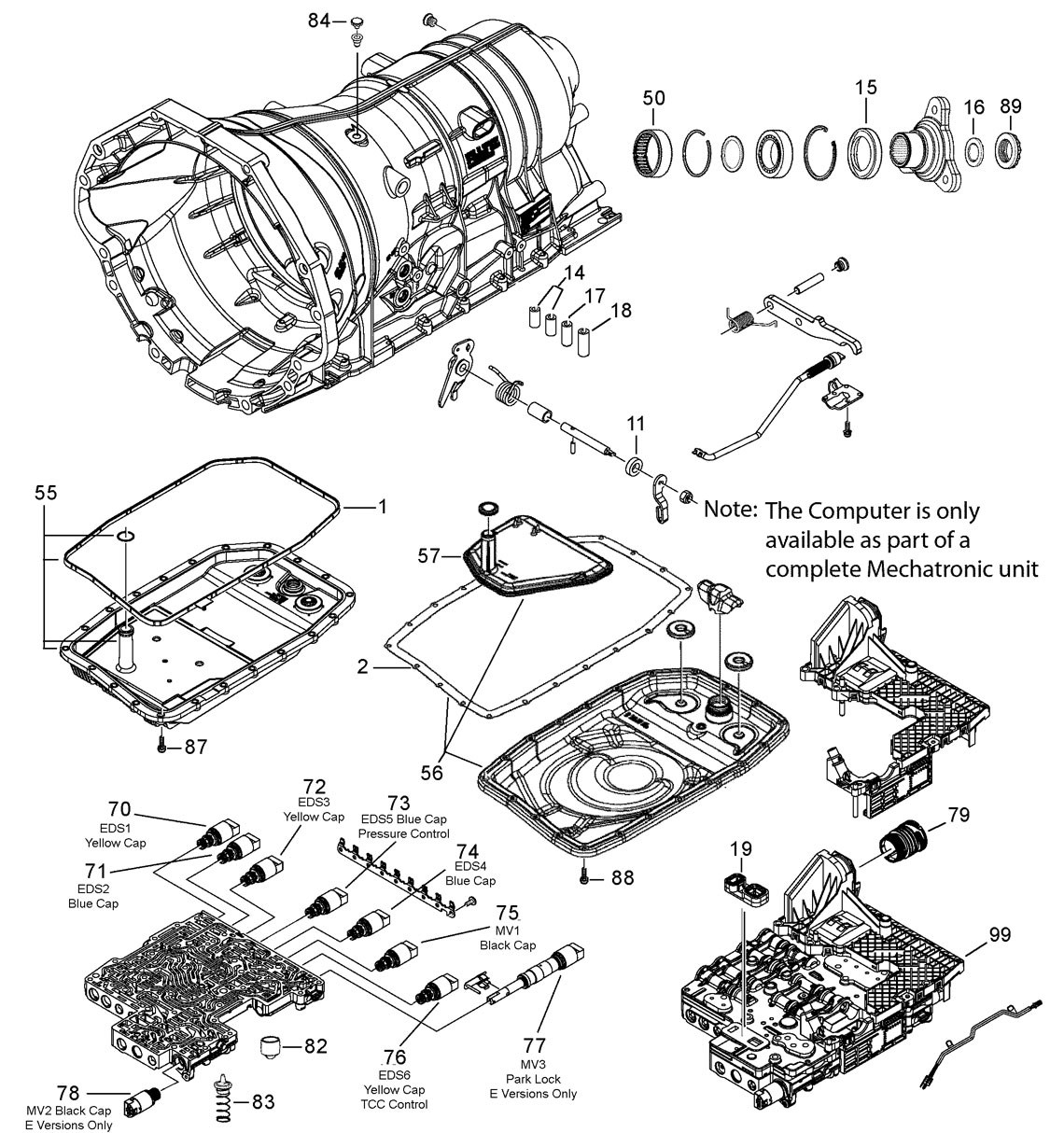

Case, Pan, Filter & Mechatronic Unit

71
74
76
79
2
70
73
78
99
87
50
55
84
89
57
56
83
88
72
82
75
19
16
18
1
14
15
17
11
77

H


overhaul kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99000K Overhaul Kit ZF 6HP26, 6HP26X 02-ON 1
Kit 99001K Overhaul Kit Transtec 6HP26, 6HP26X Transtec 02-ON 1
Kit 99001KP Overhaul Kit Precision 02-ON Alt

master kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99000KM Master Kit without Solenoids Ford, BMW ZF O/H 02-ON 1
Kit 99000KMS Master Kit with Solenoids Ford, BMW ZF O/H 02-ON 1
Kit 99001KM Master Kit without Solenoids Ford, BMW - Transtec O/H 02-ON 1
Kit 99001KMS Master Kit with Solenoids Ford, BMW - Transtec O/H 02-ON 1

gaskets

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99145K Pump Leak Kit 02-ON 1
1G 99100 Oil Pan Seal For use with Plastic Pan 02-ON 1
2G 99102 Pan Gasket OEM For use with Steel Pan 02-ON 1
2G 99103 Pan Gasket Cork For use with Steel Pan 02-ON Alt
2G 99103H Pan Gasket (Farpak) For use with Steel Pan 02-ON Alt
101A 95101 Pump Bolt Washers 02-ON 14
101A 95101-13 Pump Bolt Washers, Pack of 13 02-ON 1

rubber components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99170K E Clutch O Ring Kit 02-ON 1
Kit 99172K A Clutch O Ring Kit 02-ON 1
Kit 99174K B Clutch O Ring Kit 02-ON 1
Kit 99183K Valve Body to Case Seal Kit 02-ON 1
Kit 99199K Valve Body Component Kit 02-ON 1
5A 94185 Pump to Stator O Ring 02-ON 1
6A 94160 Stator to Case O Ring 208 ID x 2.50mm thick 02-ON 1
14G 99180 Mechatronic to Case Seal 26mm 02-ON 2
17G 99182 Mechatronic to Case Seal 31.5mm 02-ON 1
18G 99184 Mechatronic to Case Seal 40.7mm 02-ON 1
19G 99186 Adaptor Bridge Seal 02-ON 1
NI 99192 Heat Exchanger to Case Seal 02-ON 1
NI 99196 Cooler Line O Ring 02-ON 1

seals

NO PART # DESCRIPTION SIZE YEARS QTY
10A 99200 Front Pump Seal 45 ID x 58 OD x 7.00mm 02-ON 1
11G 93202 Selector Shaft Seal 10 ID x 18 OD x 5.00mm 02-ON 1
15G 99220 Extension Housing Seal 6HP26 44 ID x 72 OD x 8.00mm 02-ON 1
15G 99222 Adaptor Seal 6HP26X 39 ID x 72 OD x 8.00mm 02-ON 1
16G 99232 Output Flange to Nut Seal 28 ID x 35 OD x 5.00mm 02-ON 1
NI 99228 Intermediate Housing Seal 44 ID x 66 OD x 14.00mm 02-ON 1

sealing rings

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99250K Sealing Ring Kit 02-ON 1

friction plates

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99300K Friction Kit with 1.60mm E Frictions 02-ON 1
Kit 99300KGPZ Friction Kit GPZ 02-ON 1
Kit 99302K Friction Kit 02-ON 1
Kit 99302KD Friction Kit Exedy 02-ON Alt
Kit 99305K Friction Kit with 2.00mm E Frictions 02-ON 1
Kit 99305KA Friction Kit with 2.00mm E Frictions Exedy 02-ON Alt
Kit 99305KGPZ Friction Kit, GPZ 02-ON 1
Kit 99308K Clutch Kit Hi-Performance, Stage 2 Exedy 02-ON 1
Kit 99308KGPZ Friction & Steel Module High Performance 02-ON 1
20B 99310A A Clutch Friction, Aftermarket 187 OD x 1.60mm x 30T 02-ON 5
20B 99310D A Clutch Friction, ZF 187.5 OD x 1.60mm x 30T 02-ON Alt
20B 99310GPZ A Friction GPZ 187 OD x 1.60mm x 30T 02-ON 5
20B 99310HP A Clutch Friction, Stage 2 187 OD x 1.60mm x 30T 06-ON AR
20B 99311 A Clutch 6HP26X Codes 1068 020 039, 060, 061 187 OD x 1.60mm x 30T 02-ON 5
22C 99313GPZ FRICTION E CLUTCH (6HP26/6R80) GPZ 2.0mm 131 OD x 1.65mm x 30T 02-ON 6
22C 99314A E Clutch Friction Plate (Tan) Borg Warner 131 OD x 1.60mm x 30T 02-ON 6
22C 99314D E Clutch, OEM 131 OD x 1.60mm x 30T 02-ON Alt
22C 99314GPZ E Clutch GPZ 131 OD x 1.60mm x 30T 02-ON 6
22C 99314HP E Clutch Friction Plate, HP 131 OD x 1.60mm x 30T 02-ON Alt
22C 99315 E Clutch Tan OEM 131 OD x 1.60mm x 30T 09-ON 6
22C 99315AD E Clutch Friction Plate, Exedy 131 OD x 2.00mm x 30T 02-ON Alt
22C 99315D E Clutch 131 OD x 2.00mm x 30T 02-ON Alt
24D 99310HP B Clutch Friction, Stage 2 187 OD x 1.60mm x 30T 06-ON AR
24D 99318 B Clutch 187 OD x 2.20mm x 30T 02-ON 5
24D 99318D B Clutch Friction Plate 187 OD x 2.12mm x 30T 02-ON Alt
24D 99318GPZ B Clutch GPZ 187 OD x 2.20mm x 30T 02-ON 5
26E 99310HP C Break Friction, Stage 2 187 OD x 1.60mm x 30T 06-ON AR
26E 99318 C Brake 187 OD x 2.20mm x 30T 02-ON 5
26E 99318D C Brake Friction Plate 187 OD x 2.12mm x 30T 02-ON Alt
28E 99310A D Brake Friction, Aftermarket 187 OD x 1.60mm x 30T 02-ON 5
28E 99310D D Brake Friction, ZF 187.5 OD x 1.60mm x 30T 02-ON Alt
28E 99310GPZ D Friction GPZ 187 OD x 1.60mm x 30T 02-ON 5
28E 99310HP D Brake Friction Plate, Stage 2 187 OD x 1.60mm x 30T 06-ON AR
28E 99311 D Brake 6HP26X Codes 1068 020 039, 060, 061 187 OD x 1.60mm x 30T 02-ON 5

steel & pressure plates

NO PART # DESCRIPTION SIZE YEARS QTY
21B 99360 A Clutch 163.8 ID x 3.00mm x 30T 02-ON 6
21B 99360A A Clutch 163.8 ID x 3.00mm x 30T 02-ON Alt
21B 99360S A Clutch Steel Plate 163.8 ID x 1.75mm x 30T 06-ON AR
23C 99364 E Clutch 106.7 ID x 3.00mm x 24T 02-ON 6
23C 99364S E Clutch 02-ON Alt
23C 99365 E Clutch 106.7 ID x 2.40mm x 24T 02-ON 7
25D 99360S B Clutch Steel Plate 163.8 ID x 1.75mm x 30T 06-ON AR
25D 99368 B Clutch 163.8 ID x 2.10mm x 30T 02-ON 5
27E 99360 C Brake 163.8 ID x 3.00mm x 30T 02-ON 5
27E 99360A C Brake 163.8 ID x 3.00mm x 30T 02-ON Alt
27E 99360S C Brake Steel Plate 163.8 ID x 1.75mm x 30T 06-ON AR
29E 99360S D Brake Steel Plate 163.8 ID x 1.75mm x 30T 06-ON AR
29E 99368 D Brake 163.8 ID x 2.10mm x 30T 02-ON 7
30B 99670 A Clutch Waved Plate 02-ON 1
31B 99360 A Clutch Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
31B 99360A A Clutch Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON Alt
32C 99671 E Clutch Waved Plate 02-ON 1
33C 99392 E Clutch Pressure Plate 106.7 ID x 3.00mm x 24T 02-ON 1
34D 99394 B Clutch Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1
35D 99672 B Clutch Waved Plate 02-ON 1
36E 99396D C Brake Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
36E 99396F C Brake Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1
37E 99672 C Brake Waved Plate 02-ON 1
38E 99673 D Brake Waved Plate 02-ON 1
39E 99396D D Brake Pressure Plate 163.8 ID x 3.00mm x 30T 02-ON 1
39E 99396F D Brake Pressure Plate 163.8 ID x 3.90mm x 30T 02-ON 1

bushes

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99400K Bush Kit 02-ON 1
Kit 99401K Bush Kit Sonnax 02-ON 1
Kit 99403K Bush Kit, BMW 02-ON 1
40A 99410 Pump Needle Bearing 02-ON 1
416B 99416 A Drum Rear Bush 49.97mm Shaft 02-ON 1
416B 99417 A Drum Front Bush 59.77mm Shaft 02-ON 1
430C 99430 Bush Sungear Front & Rear 24.17mm Shaft 02-ON 1-2
430C 99432 Bush Sungear Front & Rear 25.17mm Shaft 02-ON 1-2
438D 99438 B Clutch Bush 33.97mm Shaft 02-ON 1-2
NI 99413 Bush Stator Falcon 30 ID x 33 OD x 17.70mm 02-ON 1
NI 99413-5 Bush Stator Falcon, Pack of 5 30 ID x 33 OD x 17.70mm 02-ON 1
NI 99415 Stator Rear 26 ID x 29 OD x 15.00mm 02-ON 1
NI 99420-01 Input & Output Shaft Bush 02-ON AR
NI 99420-06 Input & Output Shaft Bush, Bag of 6 02-ON AR

thrust washers & bearings

NO PART # DESCRIPTION SIZE YEARS QTY
41C 99460 Sungear to Front Planet Bearing 02-ON 1
42C 99460 Front Planet to E Drum Bearing 02-ON 1
43C 99462 E Drum to Intermediate Shaft Bearing 02-ON 1
44C 99460 Intermediate Shaft to Sungear Shaft Bearing 02-ON 1
45D 99466 B Clutch to Sungear Shaft Bearing 02-ON 1
46E 99468 Sungear Shaft to D Brake Bearing 02-ON 1
47E 99470 D Brake to Reverse Sungear Bearing 02-ON 1
48F 99476 Rear Sungear Bearing Front & Rear of Sungear 02-ON 2
49F 99478 Rear Planet to Output Shaft Bearing 02-ON 1
50G 99480 Output Shaft Bearing 54.73 ID x 63 OD x 19.90mm 02-ON 1

filters

NO PART # DESCRIPTION SIZE YEARS QTY
57G 99552 Filter 6HP26 For use with Steel Pan 02-ON 1

filter kits

NO PART # DESCRIPTION SIZE YEARS QTY
55G 99550K Filter Kit Including Pan 02-ON 1
55G 99551K Filter Kit Platic Pan Includes Oil Pan, Rubber Seal and Filter 02-ON 1
56G 99552K Filter Kit 06-04/06 1
56G 99960K Transmission Pan Upgrade Kit OEM Includes Metal Pan, Filter, OEM Gasket and Bolts 02-ON 1
56G 99960K-M Transmission Pan Kit with Metal Gasket 02-ON Alt
56G 99962K Transmission Pan Upgrade Kit Aftermarket Includes Metal Pan, Filter, Cork Gasket and Bolts 02-ON 1

pistons

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99590K Accumulator Piston Kit 02-ON 1
60B 99570 A Clutch Piston 6HP26* 02-ON 1
60B 99571 A Clutch Piston 6HP26* 02-ON 1
60B 99571 A Clutch Piston 6HP26X* 02-ON 1
61B 99572 A Clutch Damper Piston 6HP26* 02-ON 1
61B 99573 A Clutch Damper Piston 6HP26* 02-ON 1
61B 99573 A Clutch Damper Piston 6HP26X* 02-ON 1
62C 99574 E Clutch Piston* 02-ON 1
62C 99574HD Heavy Duty Overdrive "E" Piston 02-ON 1
62C 99575 E Clutch Piston* 02-ON 1
63C 99576 E Clutch Damper Piston 02-ON 1
64D 99580 B Clutch Damper Piston 02-ON 1
65D 99578 B Clutch Piston 02-ON 1

* Transmission Code Required when ordering

circlips

NO PART # DESCRIPTION SIZE YEARS QTY
56C 96630A E Clutch Retaining Circlip 1.60mm 02-ON 1
56C 96630B E Clutch Retaining Circlip 1.80mm 02-ON 1
56C 96630C E Clutch Retaining Circlip 2.00mm 02-ON 1
56C 96630D E Clutch Retaining Circlip 3.00mm 02-ON 1
58C 99632 Sungear to Front Planet Circlip 02-ON 1

springs & one way clutches

NO PART # DESCRIPTION SIZE YEARS QTY
84D 99656 B Clutch Diaphragm Spring 02-ON 1
658C 99658 C Clutch Diaphragm Spring 02-ON 1

electrical components

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99720K Solenoid Set 02-ON 1
Kit 99721K Solenoid Set 02-ON 1
70G 99700 EDS1 Solenoid (PWM) Yellow Cap 02-ON 1
71G 99702 EDS2 Solenoid (PWM) Blue Cap 02-ON 1
72G 99700 EDS3 Solenoid (PWM) Yellow Cap 02-ON 1
73G 99702 EDS5 Solenoid (PWM) Pressure Control (Blue Cap) 02-ON 1
74G 99702 EDS4 Solenoid (PWM) Blue Cap 02-ON 1
75G 99704 MV1 Solenoid (On/Off) Black Cap 02-ON 1
76G 99700 EDS6 Solenoid (PWM) TCC Control (Yellow Cap) 02-ON 1
77G 99706 MV3 Solenoid (On/Off) Park Lock E Versions only 02-ON 1
78G 99704 MV2 Solenoid (On/Off) Black Cap E Versons Only 02-ON 1
79G 99718 Mechatronic Case Connector 02-ON 1
79G 99718-5 Case Connectors - 5 Pack 02-ON 1

sundry parts

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99190K Valve Body Piston Damper Rubber Kit 02-ON 1
Kit 99780K Oversized Converter Release Valve Kit 02-ON 1
Kit 99782K Oversized Vubrication Control Valve Kit 02-ON 1
Kit 99783K Oversized Lubrication Control Valve Kit, Gen II Only 02-ON 1
Kit 99784K Oversized Bypass Clutch Valve Kit 02-ON 1
Kit 99787K Oversized Pressure Regulator Valve Kit, Gen1 Only 02-ON 1
Kit 99788K Oversize Pressure Regulator Valve Kit, Gen I 02-ON 1
Kit 99789K Oversize Pressure Regulator Valve Kit 02-ON 1
Kit 99790K Oversize Solenoid Pressure Regulator Valve Kit* Reamer Required 02-ON 1
Kit 99792K Oversize D1 & E Clutch Control Valve Kit 02-ON 1
Kit 99794K Oversize A Clutch Control Valve Kit 02-ON 1
Kit 99796K A Clutch Control Boost Valve & Sleeve 02-ON 1
Kit 99798K O Ringed End Plug Kit Sonnax 02-ON 1
Kit 99799K O Ringed End Plug Kit Internal Sonnax 02-ON 1
80A 99762 Pump Bolt 26mm 02-ON 1
81A 99764 Pump Bolt 56mm 02-ON 13
82G 95772 Valve Body Piston 02-ON 6
83G 95773 Valve Body Check Valve and Spring White 02-ON AR
84G 96782 Breather Cap 02-ON 1
86C 99760 Front Planet Oil Slinger 02-ON 1
87G 99768 Torx Screw Plastic Pan M6 x 28.5mm 02-ON 21
88G 99770 Torx Screw Metal Pan 02-ON 21
89G 99758 Output Shaft Nut 02-ON 1
NI 95775 Filler Bung 02-ON 1
NI 99752 Case to Bell Housing Breather Tube 02-ON 1
NI 99775 Filler Bung Plastic Sump 02-ON 1
NI 99785 Pressure Regulator Sleeve, Code 053 Only 02-ON 1
NI 99786 Pressure Regulator Sleeve 02-ON 1
NI 99787 Pressure Regulator Sleeve Gen II 02-ON 1
NI 99793K Oversized Clutch C Regulator Valve 02-ON 1

shift & reprogramme kits

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 99800K Shift Kit 02-ON 1
Kit 99801K Sonnax ZIP Kit Helps correct common Shift Problems, See notes 02-ON 1
Kit 99814K Valve Body Kit, RatioTek 02-ON 1
Kit 99816K Valve Body Kit (HD) RatioTek 02-ON 1

hard parts

NO PART # DESCRIPTION SIZE YEARS QTY
90A 99900 Pump Body & Gears* 02-ON 1
90A 99901 Pump Body & Gears* 02-ON 1
91A 99906 Intermediate Plate & Stator Assembly* 02-ON 1
92B 99910 A Clutch Cylinder 02-ON 1
94C 99914 Input Shaft & E Clutch Cylinder* 02-ON 1
926C 99925U Intermediate Shaft (Used) 02-ON 1
928C 99928U E Clutch Sungear & Shaft (Used) 02-ON 1
932C 99932U E Carrier (Used) 02-ON 1
946F 99946U Rear Planet Carrier Complete (Used) 02-ON 1
950F 99950U Output Ring Gear (Used) 02-ON 2
954F 99954U Output Shaft (Used) 02-ON 1
NI 99904 Pump Rear Cover Centering Plate 02-ON 1
NI 99970 Rear Mount BF Falcon 05-08 1
NI 99972 Rear Mount Territory 02-ON 1
NI 99992 Separator Plate 035 Code* 02-ON 1
NI 99993 Separator Plate 047 Code* 02-ON 1
NI 99993A Separator Plate 047 Code* Aftermarket 02-ON 1
NI 99994 Separator Plate 036, 046 & 051 Code* 02-ON 1
NI 99994A Separator Plate 036, 046 & 051 Code* Aftermarket 02-ON 1
NI 99995 Separator Plate 052 Code* 02-ON 1
NI 99995A Separator Plate 052 Code* Aftermarket 02-ON 1
NI 99996 Separator Plate 053 Code* 02-ON 1
NI 99996A Separator Plate 053 Code* Aftermarket 02-ON 1
NI 99997 Separator Plate 063 Code* 02-ON 1
NI 99998 Separator Plate 065 Code* 02-ON 1

* Transmission Code required when ordering any of the above Hard Parts

valve bodies

NO PART # DESCRIPTION SIZE YEARS QTY
99G 99998VBM Valve Body & Mechatronic Unit 02-ON 1
99G 99998VBMFORD Valve Body & Mechatronic Unit, Ford 02-ON 1

coolers

NO PART # DESCRIPTION SIZE YEARS QTY
Kit 49482K FG Falcon ZF Cooler Kit, 6 Cylinder 02-ON 1
Kit 49485K COOLER KIT FALCON BF & TERRITORY ZF 6SPD 02-ON 1
NI 49629 In Case Fitting For 49485K 02-ON AR

fluids

NO PART # DESCRIPTION SIZE YEARS QTY
NI 49901 Assembly Goo Green, Dr Trannys 02-ON 1
NI 49902 Assembly Goo Blue, Dr Trannys 02-ON 1
NI 99999-01 ZF Lifeguard 6, 1 Litre Pack 02-ON AR
NI 99999-05 ZF Lifeguard 6 5 Litre Pack 02-ON AR
NI 99999-20 ZF Lifeguard 6 20 Litre Pack 02-ON AR

tools

NO PART # DESCRIPTION SIZE YEARS QTY
Kit T-0140 Glycol Test Kit 02-ON 1
Kit T-99700 Solenoid Test Manifold Kit 02-ON 1
NI TF-95740-TL Reamer Tool for 99788K & 99788KA 02-ON 1
NI TF-95740-TL17 Reamer Tool for 99790K Valve Kit 02-ON 1
