Cause:
Valves, springs and pressurized fluid repeatedly push on the end plugs causing the plugs to deform and wear. As a result, critical pressure is lost due to excessive clearance between the plug and bore.
Correction:
The Sonnax O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce pressure losses past the end plug

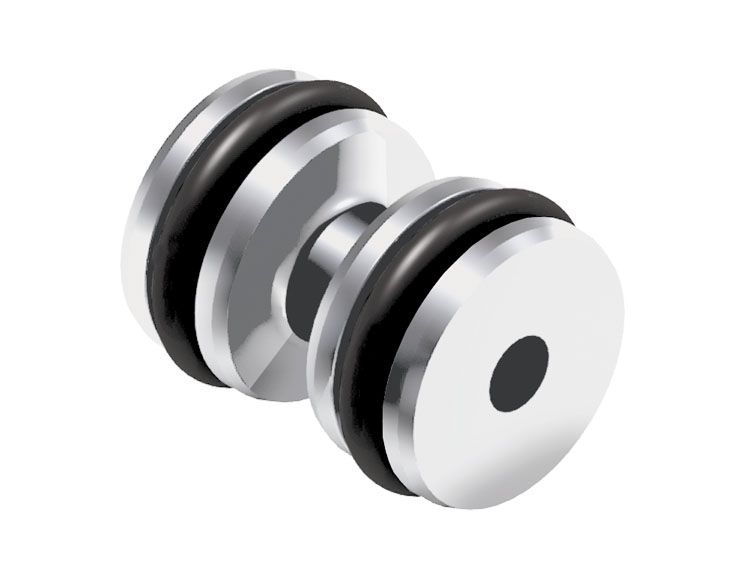

Valves, springs and pressurized fluid repeatedly push on end plugs causing them to deform and wear. As a result critical pressure is lost due to excessive clearance between the plug and bore. The Sonnax double O-ring sealed end plug kit for ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R80 units replace the damaged OE end plugs and restore pressure containment to the valve bore. Sonnax internal end plug kit services the four individual bores in the valve body which use internal end plugs to isolate valves from solenoids.
Prevent loss of critical pressure
Requires no machining or special tools
Services all four bores to isolate valves from solenoids with 12mm internal end plugs
Valve
Location
End Plug Dia.
Solenoid Pressure Regulator
Lower Valve Body
.472
Clutch D1 Latch
Drive Enable
Solenoid Multiplex
Note:
Kit is NOT compatible with ZF6HP21/28/34 (Gen.2) units.
Symptoms:
Cause:
Valves, springs and pressurized fluid repeatedly push on the end plugs causing the plugs to deform and wear. As a result, critical pressure is lost due to excessive clearance between the plug and bore.
Correction:
The Sonnax O-ringed end plugs restore correct circuit pressures. The O-ring provides additional sealing to reduce pressure losses past the end plug
Valves, springs and pressurized fluid repeatedly push on end plugs causing them to deform and wear. As a result critical pressure is lost due to excessive clearance between the plug and bore. The Sonnax double O-ring sealed end plug kit for ZF6HP19/26/32 (Gen. 1) and Ford 6R60, 6R80 units replace the damaged OE end plugs and restore pressure containment to the valve bore. Sonnax internal end plug kit services the four individual bores in the valve body which use internal end plugs to isolate valves from solenoids.
Note:
Kit is NOT compatible with ZF6HP21/28/34 (Gen.2) units.
Contents:
SONNAX Installation Instructions
